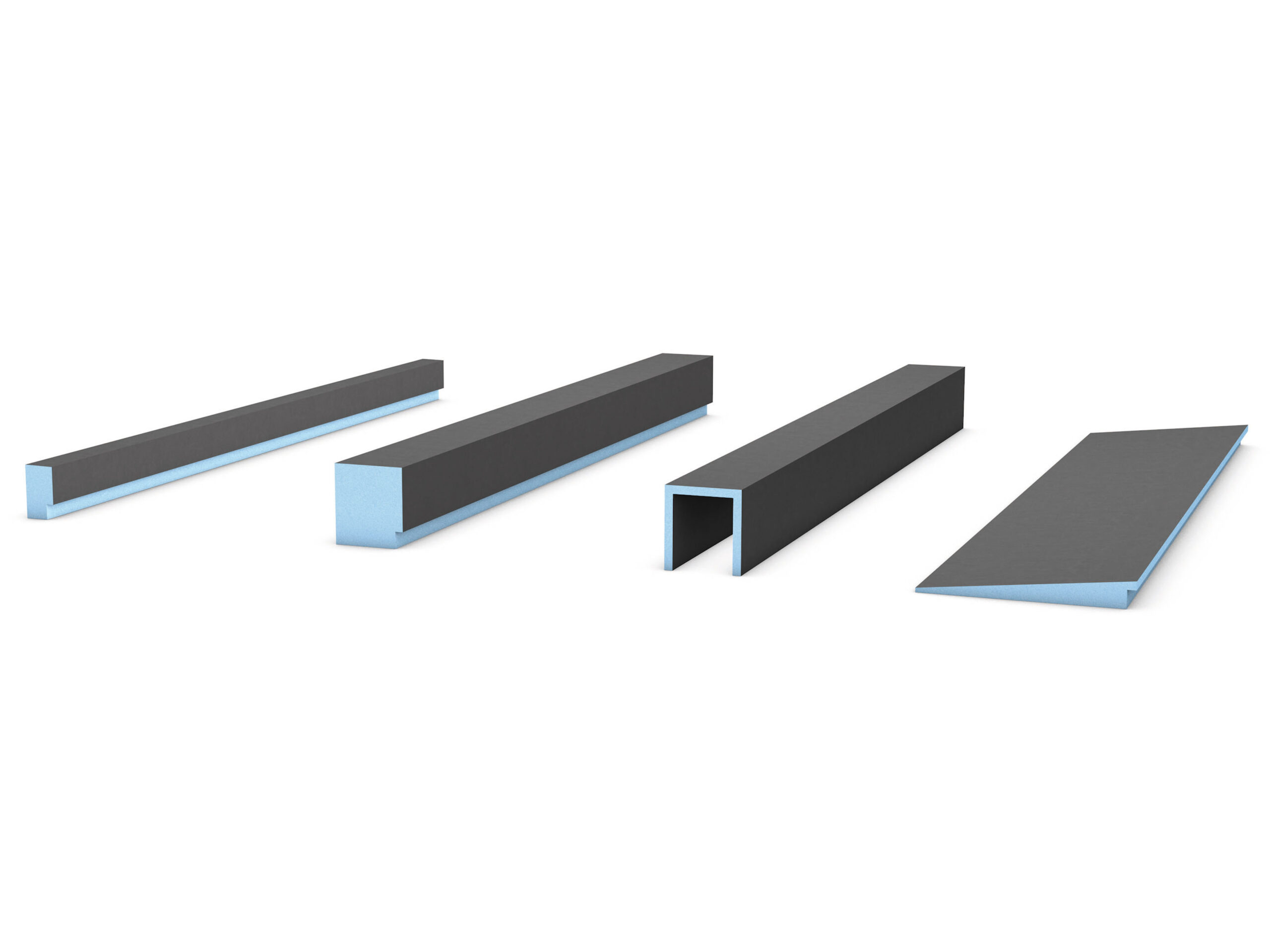

Curbs and Ramps

Product information

wedi curbs and ramps are available in several options for shower entry designs where transitions are required, and can
be installed with wedi Fundo shower bases as well as conventional mortar bed systems. Waterproof and versatile, wedi curbs and ramps may be tiled before glass doors, panels, or blocks are installed.

Epoxy glue is recommended instead of screw fasteners when installing shower door tracks. You can use our wedi Curb AT (anchor track) if fastening is desired. Solid curb options are slightly sloped on the top surface so water will run back into the shower, and carry a weight ofup to 280 lbs/ft. once tiled. The wedi ramp is ADA compliant.

wedi Fundo Primo Installation

Ghost Accordion

Displays nothing

Installation Manual and Requirements/Limitations
Product Approvals & Certification
Approvals and certificates applicable to entire Fundo Shower System incl. wedi Building Panel:

City of New York, MEA 912-52-SM

Fundo Shower Systems & Building Panels: ICC PMG 1189 (for USA & Canada) – Download Here

Meets all applicable ANSI/ISO Standards incl. ANSI 118.10 and IAPMO PS106

TCNA handbook recognized for wall, floor, countertop, & more applications

City of Los Angeles Approval M-100017

BBA (British Board of Agrement)

DIN EN ISO 9001

CE Marked

Diverse State Approvals

SAI Global Watermark Certified (Australia & New Zealand)

Codemark Certified (Australia & New Zealand)

Close Accordions

Technical Performance Data

Tensile Strength
ASTM C297
65 psi
Shear Strength
Under conditions required in ANSI A118.10-1999
4 week Shear Strength Dry: 216 psi 12 week Shear Strength Dry: 217 psi 100 day Shear Strength Wet: 201 psi
Waterproof
ASTM D4068 / ANSI A118.10-1999
Passed
Capillarity
0
Fungus/Bacteria Resistance
ASTM G21
Passed, No Growth
Linear Variation
AC 159/ASTM 1037-39
Passed, less than 0.07%
Seam Strength
ASTM D751-11 (requirement 8 lb/in width)
Passed, 36.4 lbs

Product Sizes

For product retail pricing, please see our Illustrated Retail Price List (USA or CA), available in the downloads section below.

Go to Downloads
wedi Curb Cover
Dimensions (H x W x L)
Unit
Item Number

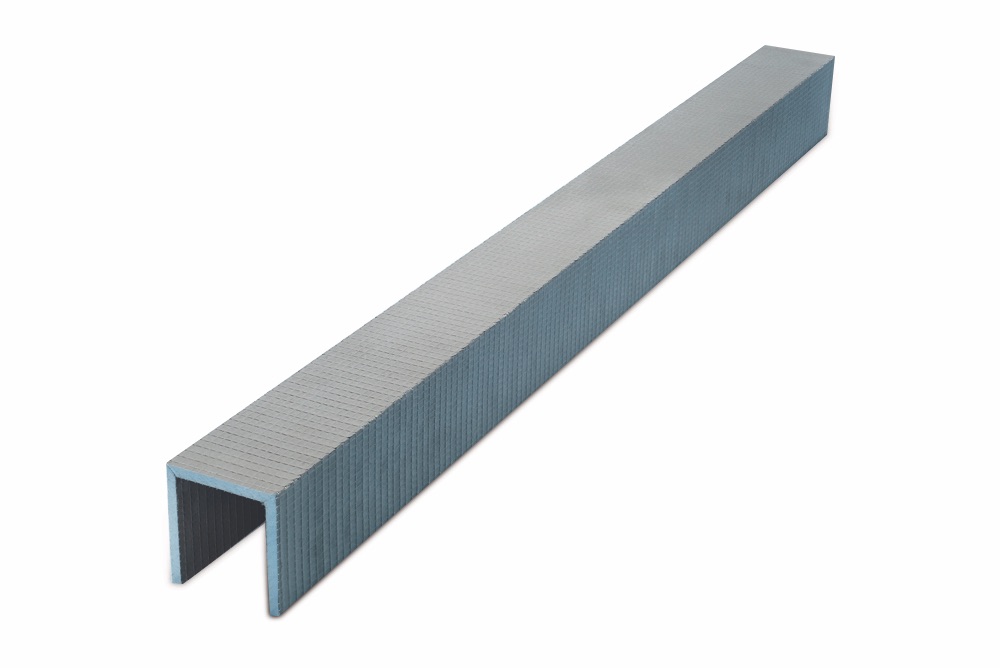

wedi Curb Cover
5 in. x 4 1/2 in. x 60 in. (127 x 114 x 1524 mm)
1 pc
US3000008
Click to View Larger
wedi Curb Cover
5 in. x 4 1/2 in. x 96 in. (127 x 114 x 2500 mm)
1 pc
US3000010
Click to View Larger
wedi Curb
Dimensions (H x W x L)
Unit
Item Number
wedi Curb
5 in. x 4 1/2 in. x 60 in. (127 x 114 x 1524 mm)
1 pc
US3000039
Click to View Larger
wedi Curb, Master pack
5 in. x 4 1/2 in. x 60 in.(127 x 114 x 1524 mm)
1 pc
US3000030
Click to View Larger

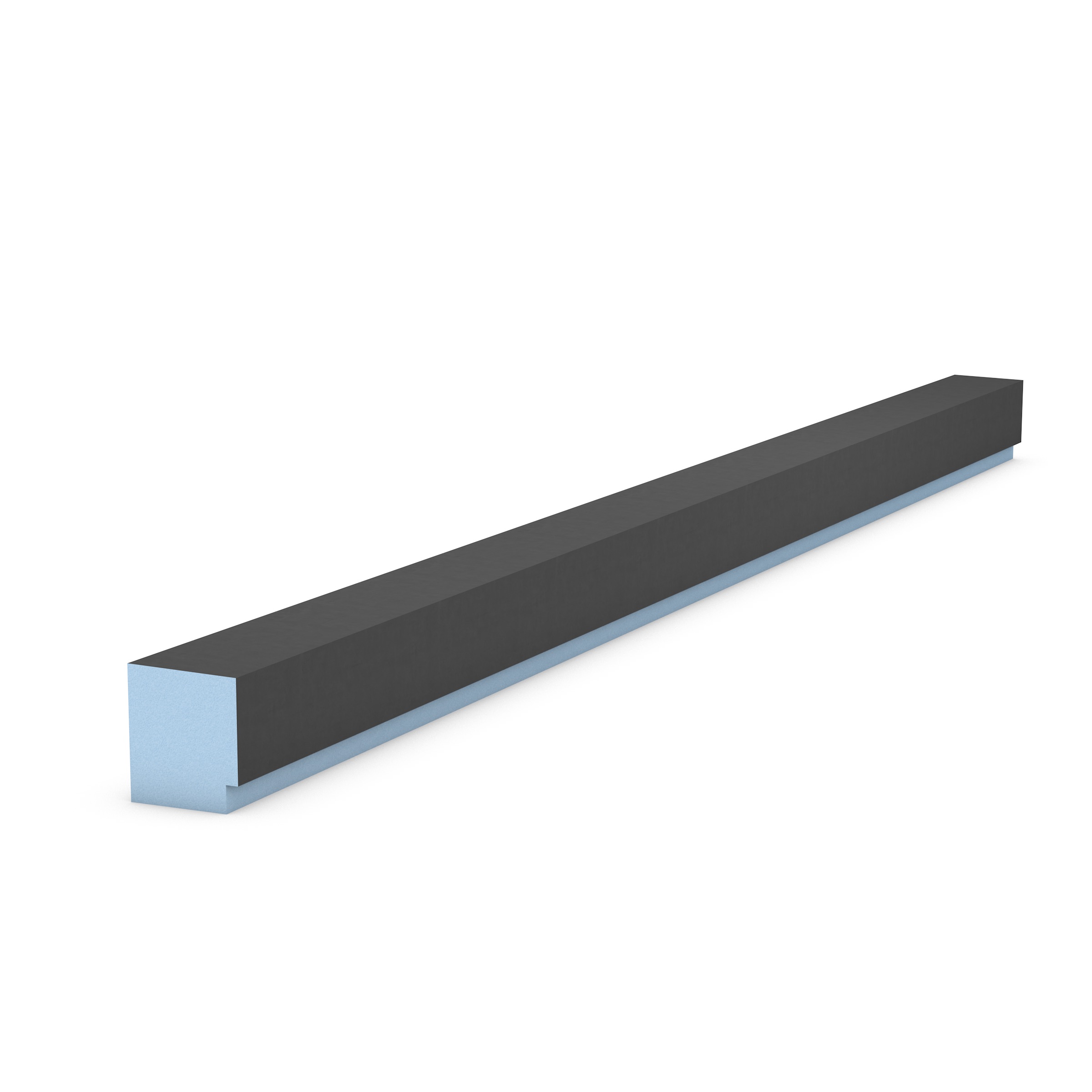

wedi Curb
5 in. x 4 1/2 in. x 96 in. (127 x 114 x 2500 mm)
1 pc
US3000041
Click to View Larger
wedi Curb, Lean
Dimensions (W x H x L)
Unit
Item Number

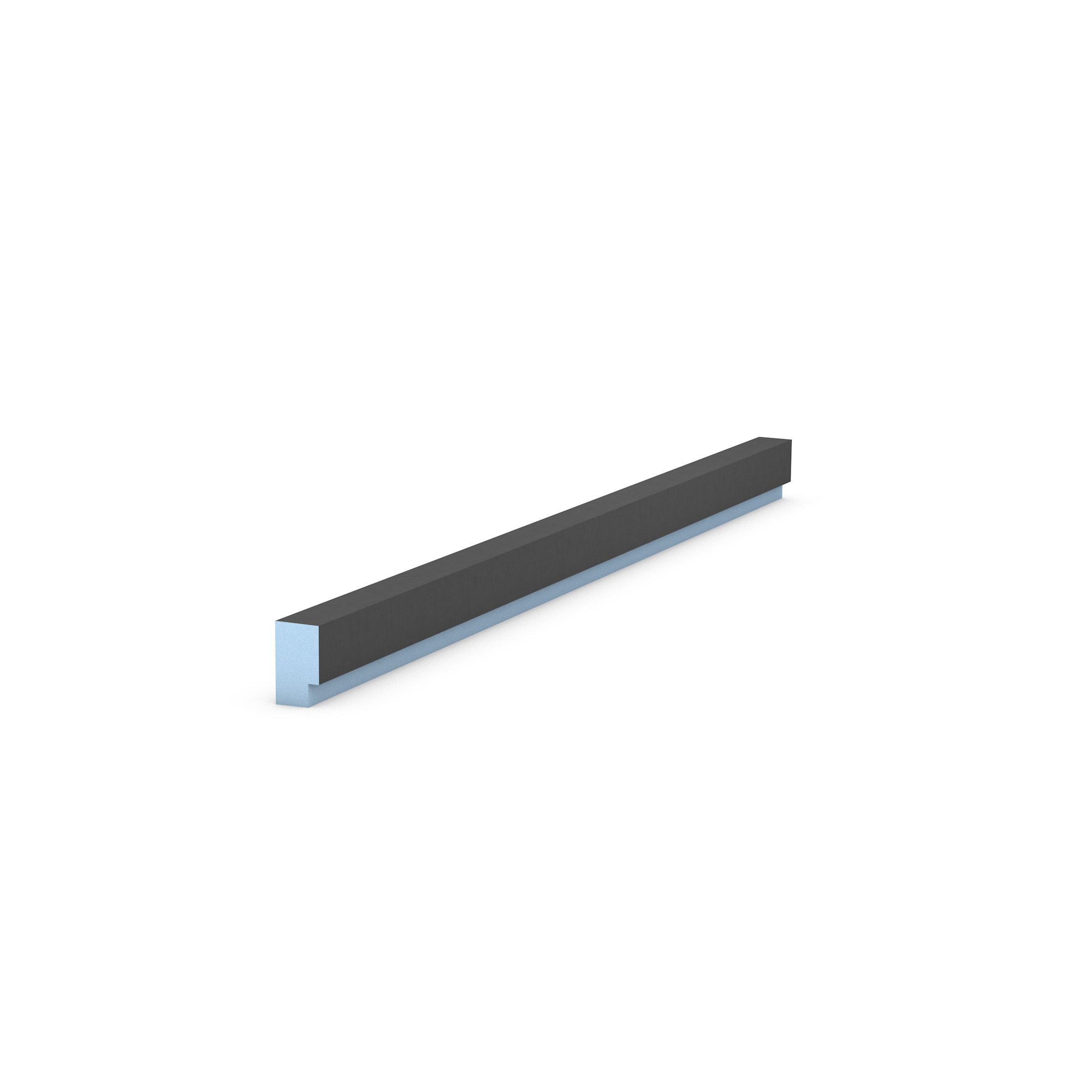

wedi Curb, Lean
2 in. x 3 1/2 in. x 60 in. (51 x 89 x 1524 mm)
1 pc
US3000038
Click to View Larger
wedi Curb, Lean, Master pack
2 in. x 3 1/2 in. x 60 in. (51 x 89 x 1524 mm)
6 pc
US3000031
Click to View Larger

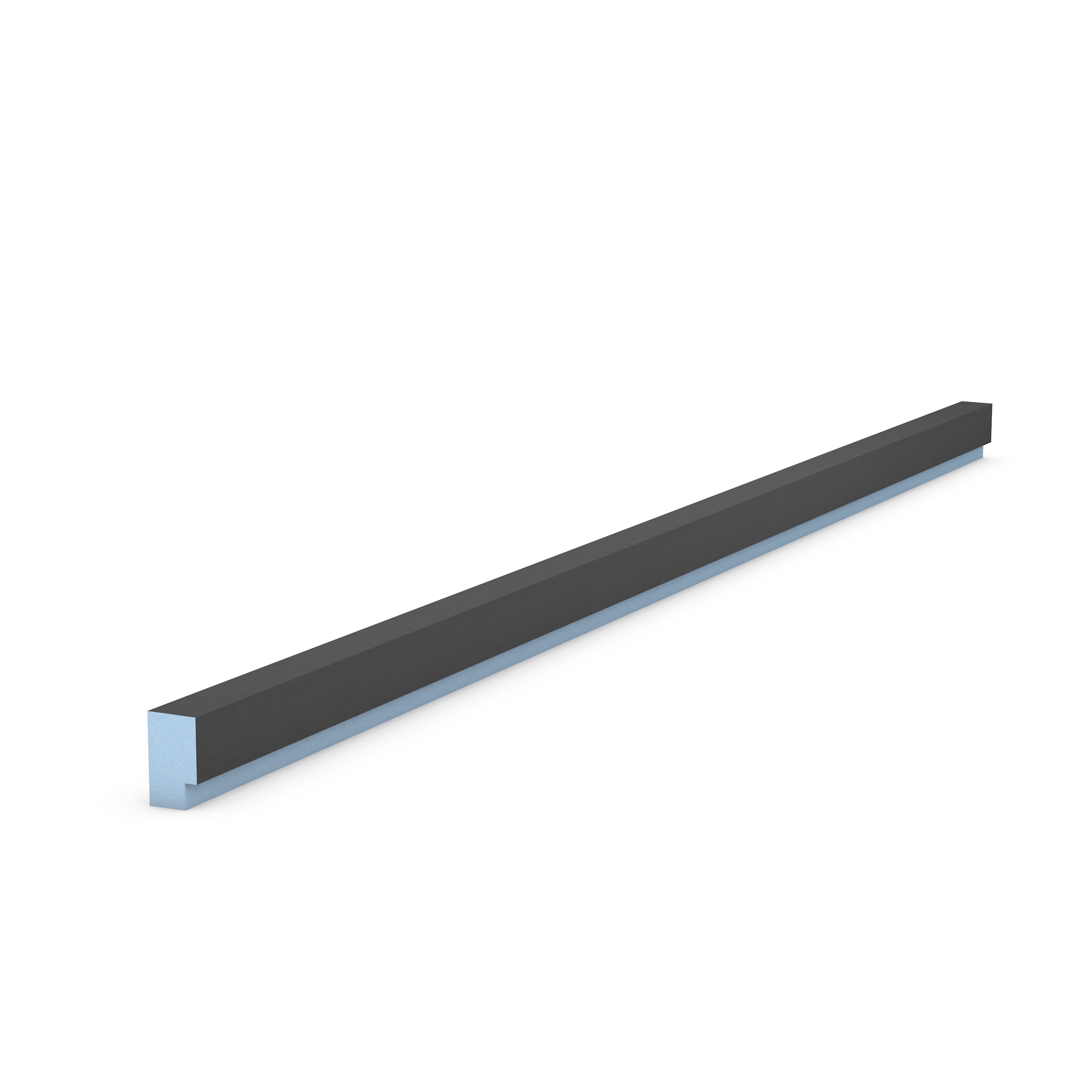

wedi Curb, Lean
2 in. x 3 1/2 in. x 96 in. (51 x 89 x 2438 mm)
1 pc
US3000040
Click to View Larger
wedi Curb AT (Anchor Track)
Dimensions (W x H x L)
Unit
Item Number
wedi Curb AT
5 in. X 4 1/2 in. X 60 in. (127 x 114 x 1524 mm)
1 pc
US3000048
Click to View Larger
wedi Curb AT, Lean
2 in. X 3 1/2 in. X 60 in (51 x 89 x 1524 mm)
1 pc
US3000049
Click to View Larger
wedi Shower Ramp
Dimensions (L x W x H)
Unit
Item Number
wedi Shower Ramp (ADA Compliant)
5 ft. x 15 in., sloped 1 1/2 in. to 1/4 in. | (1524 x 406.4 mm, sloped 38.1 to 6.35 mm)
1 pc
073736517
Click to View Larger
