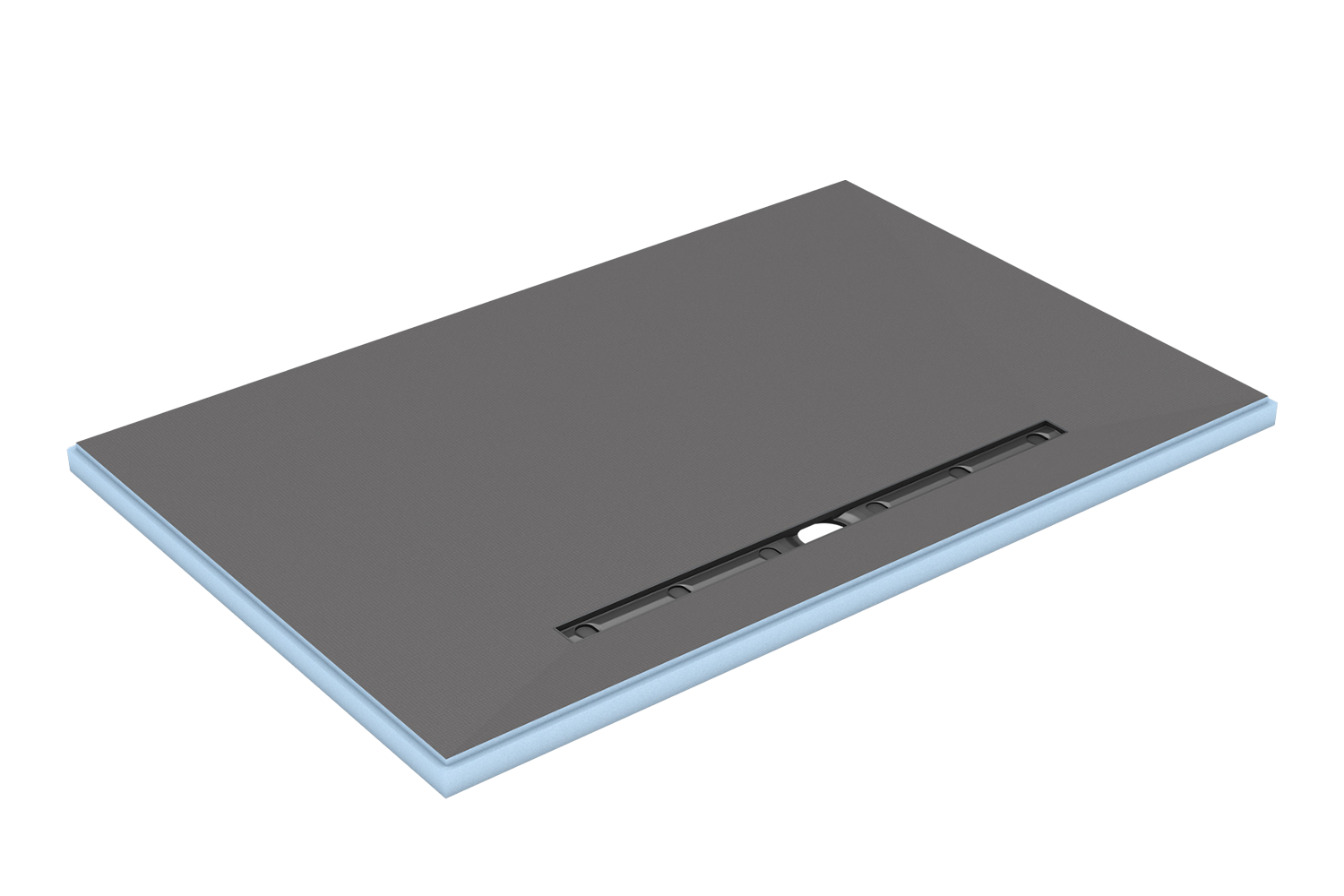

wedi Fundo® Linear Shower Base

These presloped and waterproof shower bases come with an integrated linear drain channel and wedi® Fundo Click and Seal® Drain unit. You can select one of our linear wedi Premium drain cover options to fit the preferred design.

Key features:

  • Linear Shower base: single piece base featuring a 4-way slope design and level perimeter for safe recessing into a subfloor construction.
  • Linear Shower Module consists of two components: line drain module and extension module, featuring a one-way slope with close to wall drain placement.



Ghost Accordion

Displays nothing

wedi Fundo Linear Installation Video

Video

Installation Manual, Requirements/Limitations and Warranty
Product Approvals & Certification
Approvals and certificates applicable to entire Fundo Shower System incl. wedi Building Panel:

City of New York, MEA 912-52-SM

Fundo Shower Systems & Building Panels: ICC PMG 1189 (for USA & Canada) – Download Here

Meets all applicable ANSI/ISO Standards incl. ANSI 118.10 and IAPMO PS106

TCNA handbook recognized for wall, floor, countertop, & more applications

City of Los Angeles Approval M-100017

BBA (British Board of Agrement)

DIN EN ISO 9001

CE Marked

Diverse State Approvals

SAI Global Watermark Certified (Australia & New Zealand)

Codemark Certified (Australia & New Zealand)

Technical Performance Data

Tensile Strength
ASTM C297
65 psi
Shear Strength
Under conditions required in ANSI A118.10-1999
4 week Shear Strength Dry: 216 psi 12 week Shear Strength Dry: 217 psi 100 day Shear Strength Wet: 201 psi
Waterproof
ASTM D4068 / ANSI A118.10-1999
Passed
Waterproofness of Assembly
ASTM E331
Passed, wedi Fundo Kit assembly (complete system)
Capillarity
0
Fungus/Bacteria Resistance
ASTM G21
Passed, No Growth
Linear Variation
AC 159/ASTM 1037-39
Passed, less than 0.07%
Floor and Trench Drain Compliance
ASME A112.18.2
Passed, Compliant (ICC PMG 1189)
Seam Strength
ASTM D751-11 (requirement 8 lb/in width)
Passed, 36.4 lbs

Product Sizes

For product retail pricing, please see our Illustrated Retail Price List (USA or CA), available in the downloads section below.

Go to Downloads
Model
Dimensions
Channel Length
Unit
Item Number
wedi Fundo® Linear Shower Base
36 in. x 60in.
43 5/16 inch
1 pc
US9310001
Click to View Larger
wedi Fundo® Linear Shower Base
48 in. x 60 in.
27 1/2 inch
1 pc
US9310002
Click to View Larger
wedi Fundo® Linear Shower Base
72 in. x 48 in.
43 5/16 inch
1 pc
US9310003
Click to View Larger
Shower Extensions
Dimensions
Unit
Item Number
wedi® Shower Extension 24” x 48”
24 in. x 48 in. sloped 1/4 in./ft
1 piece
073783528
Click to View Larger
wedi® Shower Extension 12” x 72”
12 in. x 72 in. sloped 1/4 in./ft
1 piece
US3000036
Click to View Larger
wedi® Curbless Shower Extension 12” x 60”
12 in. x 60 in. sloped 1/4 in./ft
1 piece
US3000035
Click to View Larger
wedi® Shower Corner Extension
16 1/2 in. x 16 1/2 in. x 1 13/16 in. sloped min. 1/4 in. /ft. (2.1%)
1 piece
US3000053
Click to View Larger
wedi® Curbless Shower Corner Extension
16 1/2 in. x 16 1/2 in. x 1 1/16 in. sloped min. 1/4 in. /ft. (2.1%)
1 piece
US3000052
Click to View Larger
Model
Dimensions
Channel Length
Unit
Item Number
wedi Fundo® Linear Shower Module
32 in. x 5 3/4 in. Line Module Height/Thickness: 1 3/8 in.
27 19/32 in.
1 pc
US9320001
Click to View Larger
wedi Fundo® Linear Shower Module
36 in. x 5 3/4 in. Line Module Height/Thickness: 1 3/8 in.
27 19/32 in.
1 pc
US9320003
Click to View Larger
wedi Fundo® Linear Shower Module
42 in. x 5 3/4 in. Line Module Height/Thickness: 1 3/8 in.
27 19/32 in.
1 pc
US9320004
Click to View Larger
wedi Fundo® Linear Shower Module
48 in. x 5 3/4 in. Line Module Height/Thickness: 1 3/8 in.
-
1 pc
075100051
Click to View Larger
wedi Fundo® Linear Shower Module
54 in. x 5 3/4 in. Line Module Height/Thickness: 1 3/8 in.
43 19/64 in.
1 pc
US0320005
Click to View Larger
wedi Fundo® Linear Shower Module
66 3/4 in. x 32 in. Extension Module Height/Thickness: 1 3/8 in. – 2 3/16 in.
-
1 pc
US9330001
Click to View Larger
wedi Fundo® Linear Shower Extension
66 3/4 in. x 36 in. Extension Module Height/Thickness: 1 3/8 in. – 2 3/16 in.
-
1 pc
US9330003
Click to View Larger
wedi Fundo® Linear Shower Extension
66 3/4 in. x 42 in. Extension Module Height/Thickness: 1 3/8 in. – 2 3/16 in.
-
1 pc
US9330004
Click to View Larger
wedi Fundo® Linear Shower Extension
66 3/4 in. x 48 in. Extension Module Height/Thickness: 1 3/8 in. – 2 3/16 in.
-
1 pc
US9330002
Click to View Larger
wedi Fundo® Linear Shower Extension
66 3/4 in. x 54 in. Extension Module Height/Thickness: 1 3/8 in. – 2 3/16 in.
-
1 pc
US9330005
Click to View Larger
