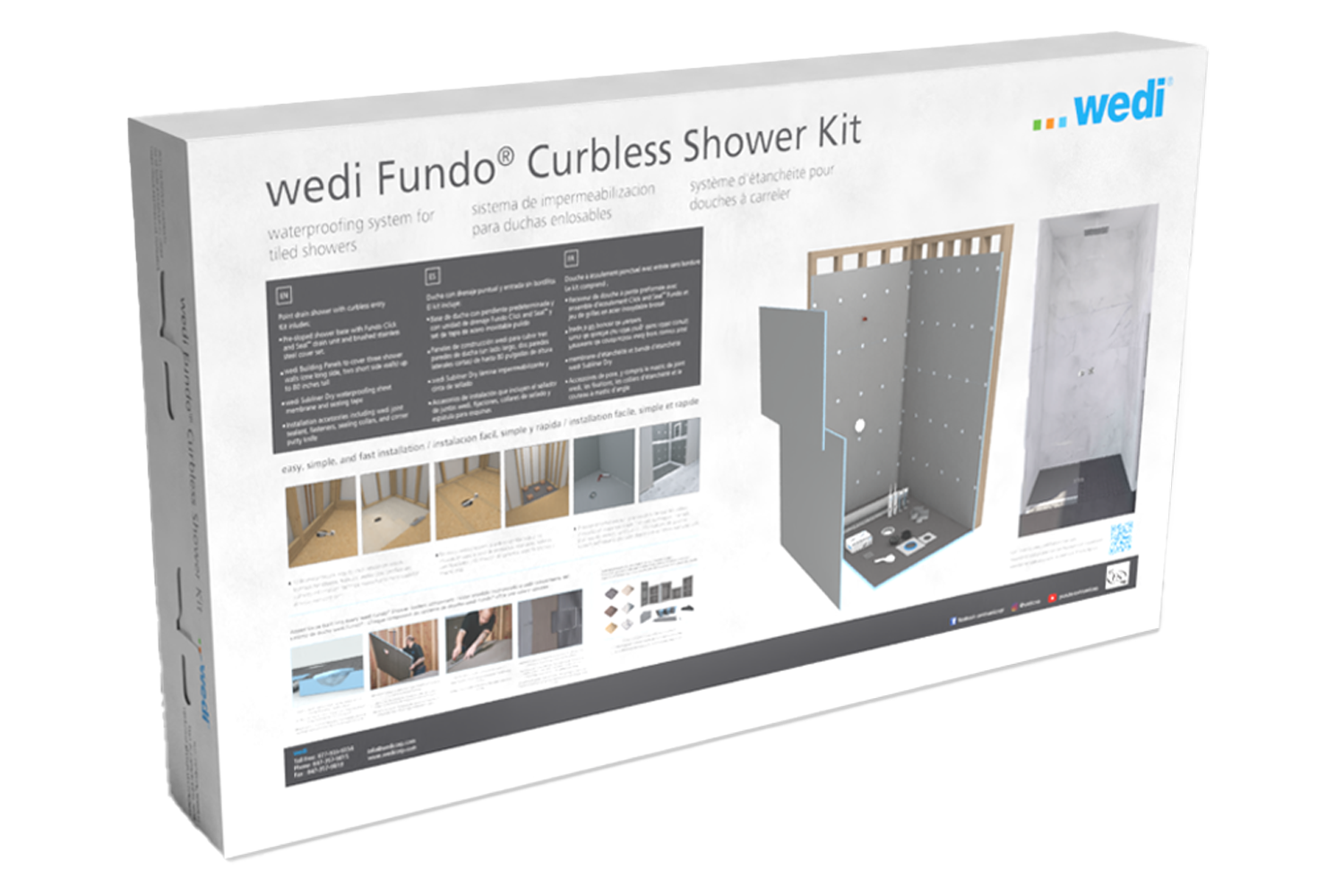

wedi Fundo® Curbless Shower Kit
PRODUCT INFO
The wedi Fundo® Curbless Shower Kit included all parts and pieces necessary to build a complete, 100% waterproof shower with barrier-free entry.
Kits includes:
1 – wedi Fundo® Curbless Shower Base (select size)
5-6 – wedi® Building Panels (36 in. or 48 in. wide, depending on kit)
1 – wedi Fundo® Click and Seal® Drain Kit
8-9 – 10.5 oz tubes of wedi® Joint Sealant (depending on kit)
2 – 10.5 oz tubes of wedi® Sealant 620
1 – wedi® Subliner Dry Waterproof Sheet Membrane
1 – wedi® Corner Putty Knife
![](https://wedicorp.com/wp-content/uploads/2024/04/Asset-111.jpg"){kind=small}
2 – wedi® Subliner Dry Inside and Outside Corners
1 – wedi® Fastener Kit (1 – 100 count box) wedi® Subliner Dry Pipe Seal
1 – wedi® Subliner Dry Mixing Valve Seal
1 – wedi® Subliner Dry Pipe Seal
1 – wedi® Drain Cover Stainless Steel
Optional add-ons like soap niches, seats, and benches can be purchased individually.
wedi Fundo® Curbless Shower Kits are:
- 100% internally waterproof and mold proof
- Prefabricated to the maximum amount for fast and easy installation
- Easy to cut and customize to fit any size project
- Made from premium quality ingredients with quality assured performance
- Packaged locally at our USA Manufacturing Facility in Batavia, IL
- Support by local wedi Technicians that can assist installs and trouble shooting
- Backed by a 10-year limited warranty that covers what matters (with opportunities for 15- or 20-year extended warranties)
Ghost Accordion
Displays nothing
wedi Fundo Shower Base Installation Video
Installation Manuals, Requirements/Limitations and Warranty
- wedi Fundo® Curbless Shower Kit Installation Manual – Download Here
- wedi® Curbless Shower Recess Kit Installation Manual – Download Here
- Extensions Installation Manual – Download Here
- Warranty – Download Here
- Limitations – Download Here
Product Approvals & Certification
Approvals and certificates applicable to entire Fundo® Shower System incl. wedi Building Panel:
City of New York, MEA 912-52-SM
Fundo® Shower Systems & Building Panels: ICC PMG 1189 (for USA & Canada) – Download Here
Meets all applicable ANSI/ISO Standards incl. ANSI 118.10 and IAPMO PS106
TCNA handbook recognized for wall, floor, countertop, & more applications
City of Los Angeles Approval M-100017
BBA (British Board of Agrement)
DIN EN ISO 9001
CE Marked
Diverse State Approvals
SAI Global Watermark Certified (Australia & New Zealand)
Codemark Certified (Australia & New Zealand)
Technical Performance Data
Product Sizes
For product retail pricing, please see our Illustrated Retail Price List (USA or CA), available in the downloads section below.
Additional Downloads
Downloads most relevant to this product page are displayed automatically. If you would like to view other downloads for other products, you may sort by category (Product name & language) or tags (Specific type of file).
Should the file you’re looking for not be listed, please email marketing@wedicorp.com for assistance.
